Focused on Contaminant Removal
Parker provides a comprehensive range of filter cartridges that can remove solid and liquid contaminants from natural gas or fluid streams.
Take Gas Filtration to the Next Level with PEACH®
PEACH is a depth cartridge technology providing flow in radial, axial and helical directions. This creates a tortuous flow path that yields high contaminant loading, structural strength, maximum efficiency, and outstanding filtration performance.
High Flow Capacity Liquid Filtration with XtreamPure®
Large 6 inch diameter cartridges in 40 inch, 60 inch and 80 inch lengths with a variety of material choices for compatibility and performance needs. Available in Pleated, PEACH, Bag or Strainer designs. Inside-to-outside flow.
Upgrade Your Carbon Canisters to XtreamSorb®
Xtreamsorb incorporates both PEACH technology and proprietary carbon block technology to provide filtration and adsorption capabilities all in one cartridge to remove heavy hydrocarbons, aromatics and color species from processing liquids.
Revolutionizing Process Purification With XtreamSorb
XtreamSorb is a revolutionary new two-stage filter-adsorber that combines an outer PEACH filter media and an inner porous extruded carbon block. XtreamSorb lowers overall capital investment, increases plant efficiency and decreases maintenance time.
Click Here

Oil & Gas Filtration Trusted Around the World



In oil & gas applications, contaminants come in a wide variety of forms. Not only are we dealing with the removal of solids, liquids and gases but also complex mixtures which create sludges, gels and foams.

At Parker we believe that proper oil & gas filtration shouldn’t be solved by just one type of equipment or cartridge style. That is why we have a variety of PECO filter vessels and cartridges to handle even the most difficult of contaminant removal challenges.

We always believe “The Contaminant Dictates the Method” upon which filter products we select. With over eight PECO categories of filter vessels and a multitude of PECO depth and pleated cartridge options, we can ensure the right selection for our customers’ application needs.



Series PGC, PEACH® Gemini

PEACH technology, depth style gas filter-coalescer for use in PECO PEACH Gemini PuraSep generation 1 Series PGCPH vessels. Used to provide ultra-clean gas with high efficiency removal of solid and liquid contaminants down to 0.3 microns. Available in various performance levels: PL-01, PL-20, PL-23.
Learn more

Series PGC2, PEACH® Gemini

PEACH technology, depth style gas filter-coalescer for use in PECO PEACH Gemini PuraSep generation 2 Series GEM2 vessels. Used to provide ultra-clean gas with high efficiency removal of solid and liquid contaminants down to 0.3 microns. Available in various performance levels: PL-01, PL-20, PL-23.
Learn more

Series NGGC, PEACH® DYNACEPTOR™

PEACH technology, depth style gas coalescers for use in PECO Series 77V vertical gas coalescer vessels or competitor vessels of similar design. Highly efficient removal of aerosol mist down to the 0.3 micron level. Available in various performance levels: PL-01, PL-20, PL-23.

Series EZ-PCHG, PEACH® DYNASEP™

PEACH technology, depth style gas filter-separator cartridges for use in PECO Series 75HTL and 75VTL Titan PuraSep® gas vessels. Available in the following micron ratings: 0.1, 0.3, 0.5, 1, 5, 10.

Series PCHG, PEACH® DYNASEP™

PEACH technology, depth style gas filter-separator cartridges for use in PECO Series 75H and 75V gas vessels or competitor vessels of similar design. Available in the following micron ratings: 0.1, 0.3, 0.5, 1, 5, 10.

Series EZ-PSFG, TRUGARD™

Pleated style gas filter-separator cartridges for use in PECO Series 70HTL and 70VTL Titan PuraSep® dry gas vessels. Available in the following micron ratings: 0.5, 1, 5, 10, 20, 50.

Series PSFG, TRUGARD™

Pleated style gas filter-separator cartridges for use in PECO Series 70H and 70V gas vessels or competitor vessels of similar design. Available in the following micron ratings: 0.5, 1, 5, 10, 20, 50.

Series PS-5 & PS-8, PLEATGARD™

Pleated style dry gas filter cartridges for use in PECO Series 30F gas vessels. Available in the following micron ratings: 1, 2, 5, 10, 20.

Series PCHG-30F, PEACH® DYNAGARD™

PEACH technology, depth style dry gas filter cartridges for use in PECO Series 30F gas vessels. Available in the following micron ratings: 0.3, 1, 10.

Series PEPP & PEPS, GRITGARD™

Pleated style gas filter-separator cartridges for use in PECO Series 70HTL and 70VTL Titan PuraSep® dry gas vessels. Available in the following micron ratings: 0.5, 1, 5, 10, 20, 50.

Series PCHG-6.-3.12, PCHG-6-7.18, PEACH®, DYNAGARD™

PEACH technology, depth style dry gas filter cartridges for use in PECO Series 30 gas vessels or competitors vessels of similar design. Available in the following micron ratings: 0.3, 1, 10.

Series XP, XTREAMPURE®

Cartridges designed for high flow rates in 6"OD and 40" or 60" lengths and used in PECO Series 55HX and 55VX liquid vessels or competitors vessels of similar design. Several styles to handle any temperature, compatibility and cleanliness. Available in a wide range of medias and micron ratings.

Series XP-E, XTREAMPURE®

Cartridges designed for high flow rates in 6”OD and 40” or 60” lengths. Used in PECO series 55HX and 55VX liquid vessels or competitor’s vessels of similar design. Multi-layered, pleated polyester media with nylon end caps and plated-steel outer support. Available in a wide range of micron ratings.

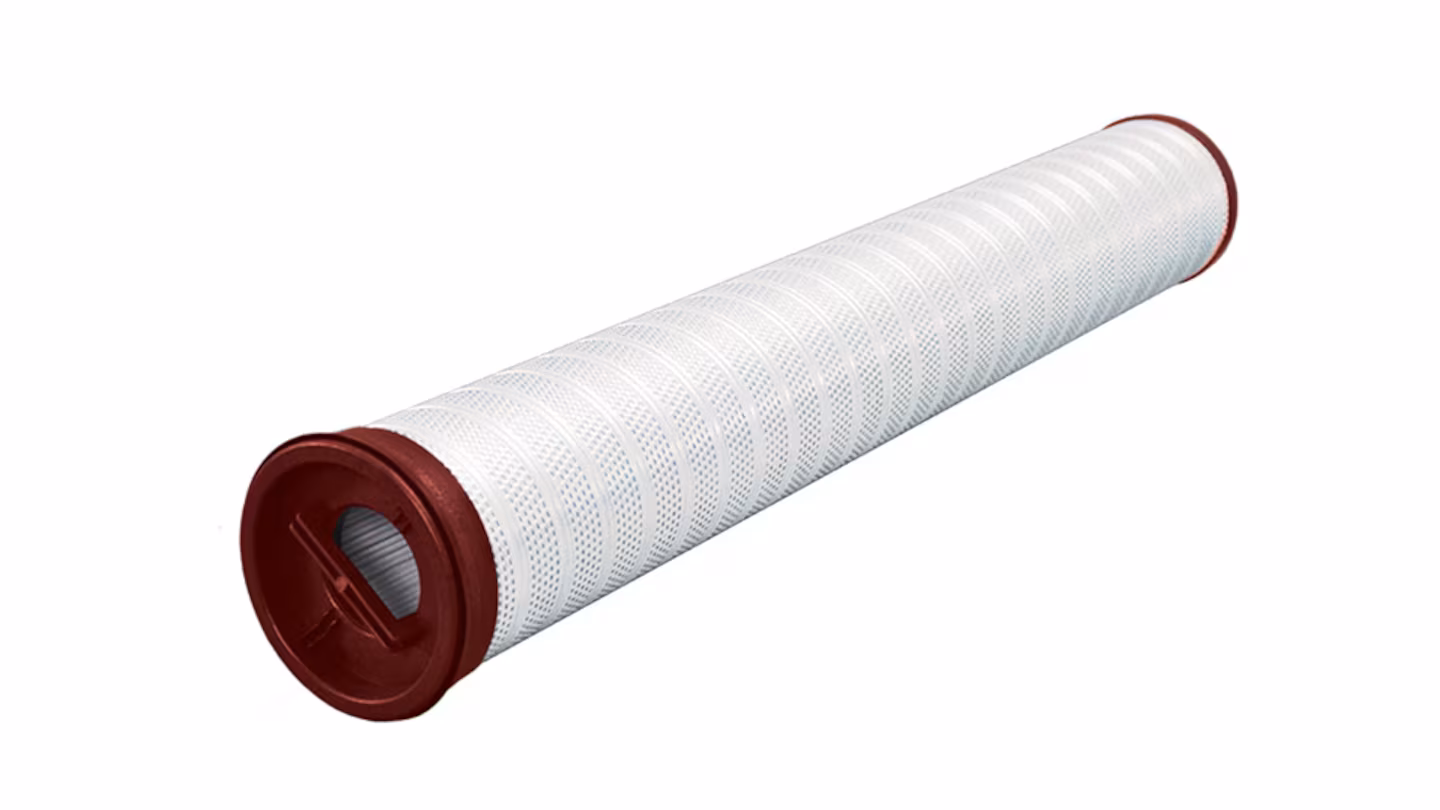

Series XP-G, XTREAMPURE®

Cartridges designed for high flow rates in 6”OD and 40” or 60” lengths. Used in PECO series 55HX and 55VX liquid vessels or competitor’s vessels of similar design. Multi-layered, pleated fiberglass media. Available in a wide range of hardware materials and micron ratings.

Series XP-L, XTREAMPURE®

Cartridges designed for high flow rates in 6”OD and 40” or 60” lengths. Used in PECO series 55HX and 55VX liquid vessels or competitor’s vessels of similar design. All polypropylene design available in a wide range of micron ratings

Series XP-PCH, XTREAMPURE®

Cartridges designed for high flow rates in 6”OD and 40” or 60” lengths. Used in PECO series 55HX and 55VX liquid vessels or competitor’s vessels of similar design. PEACH depth technology provides a rigid structure while maintaining porosity and permeability for flow.

Series XP-C, XTREAMPURE®

Cartridges designed for high flow rates in 6”OD and 40” or 60” lengths. Used in PECO series 55HX and 55VX liquid vessels or competitor’s vessels of similar design. Pleated cellulose media with nylon end caps and plated-steel outer support. Available in a wide range of micron ratings.

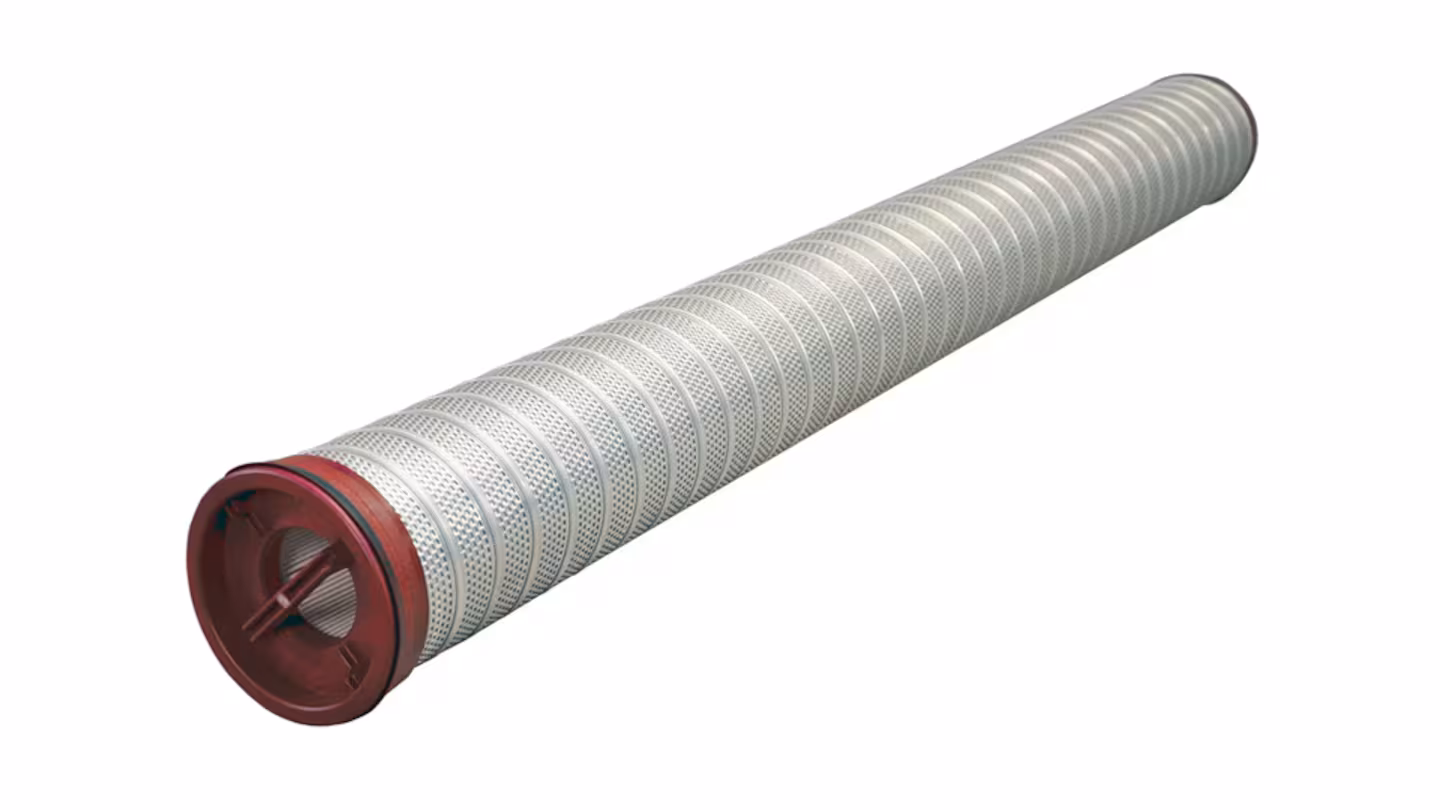

Series XP-CC, XTREAMPURE®

Cartridges designed for high flow rates in 6”OD and 40” or 60” lengths. Used in PECO series 55HX and 55VX liquid vessels or competitor’s vessels of similar design. Multi-layered, pleated lo-cure cellulose media with nylon end caps and steel outer support. Available in a wide range of micron ratings.

Series XPB XTREAMPURE®

Bags designed for high flow rates in 6”OD and 40” or 60” lengths. Used in PECO series 55HX and 55VX liquid vessels or competitor’s vessels of similar design. Polyester felt bag media available in a wide range of micron ratings.

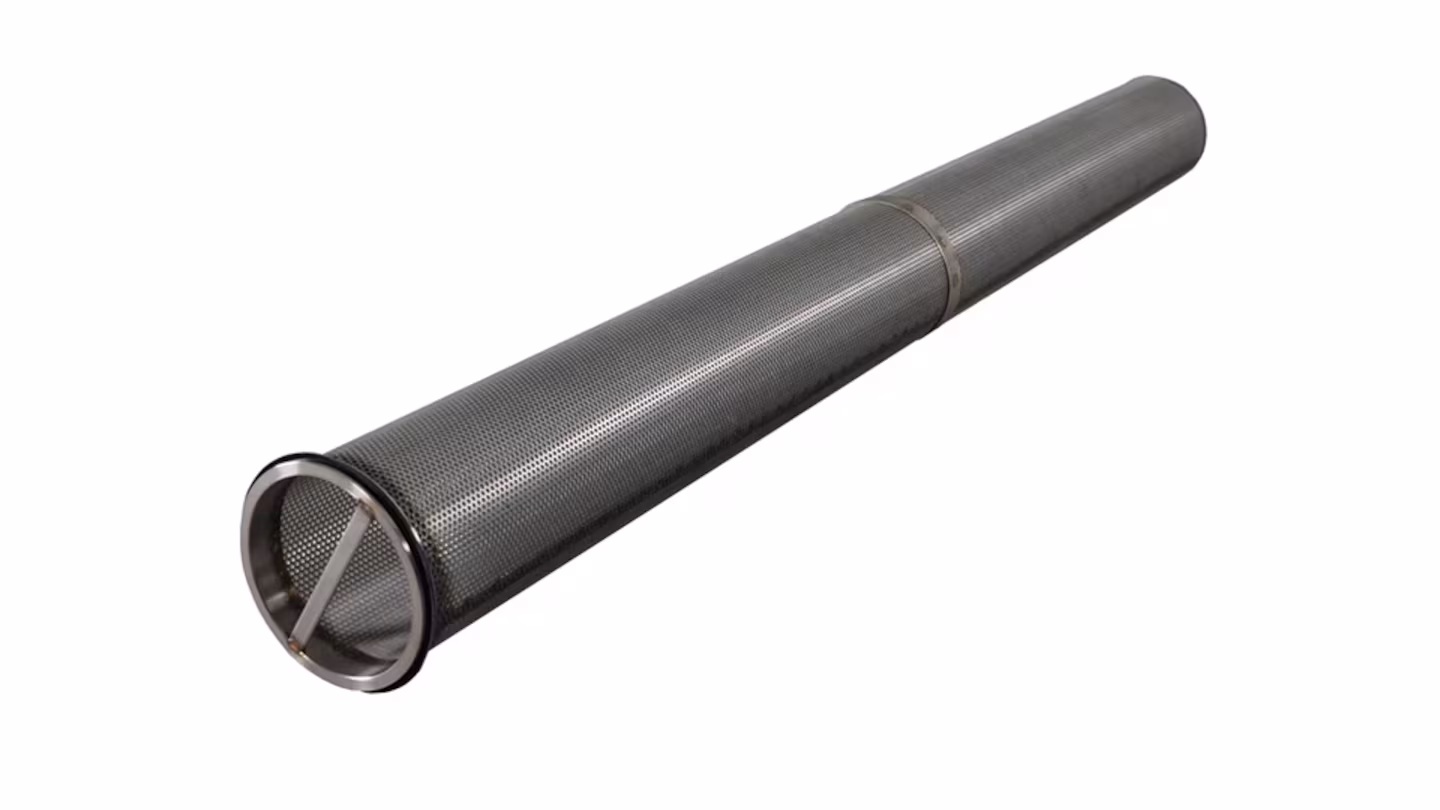

Series XP-SS, XTREAMPURE®

Cartridges designed for high flow rates in 6”OD and 40” or 60” lengths. Used in PECO series 55HX and 55VX liquid vessels or competitor’s vessels of similar design. All stainless design provides a robust, cleanable design in a wide range of micron ratings

Series P600D, GOLDXTREAM®

PEACH technology, depth style cartridges in 6"OD with various lengths and double open end cap design. Used in PECO Series 55 liquid vessels or competitor vessels of similar design. Available from 1 to 100 micron ratings options.

Series PS-6, TRU-PLEAT™ XL

Pleated style cartridges made with synthetic or glass media in 6"OD with various lengths and double open end cap design. Used in PECO Series 55 liquid vessels or competitor vessels of similar design. Available from 2 to 70 micron rating options.

Series CM, CHEMELEAN®

Pleated or PEACH style cartridge options in 6"OD and 20" or 40" lengths for use in PECO Series 55C liquid vessels. Available in a large variety of medias from 1 to 100 micron rating options.

Series PP-6, CELLUPLEAT™

Pleated style cartridges made with cellulose media in 6"OD with various lengths and double open end cap design. Used in PECO Series 55 liquid vessels or competitor vessels of similar design. Available from 0.5 to 60 micron rating options.

Series PPL & P90, PEACH-PURE™

PEACH technology, depth style cartridges in 2.5"OD and 3"OD with various lengths and a variety of end cap options. Used in PECO Series 55 liquid vessels or competitor vessels of similar design. Available from 1 to 150 micron ratings options.

Series FT, TEX-PURE™

Rolled depth style "sock" cartridges are available in a variety of materials with the most common being a cotton/excelsior blend. Used in PECO Series 55 liquid vessels or competitor vessels of similar design. Available from 2 to 100 micron rating options.

Series PFI, WOUND-PURE™

Stringwound depth style cartridges are offered in a variety of string materials and micron ratings. Used in PECO Series 55 liquid vessels or competitor vessels of similar design.

Series PS, TRU-PLEAT™

Pleated style cartridges made using polyester, polypropylene or glass media with synthetic hardware and a variety of end cap styles. Used in PECO Series 55 liquid vessels or competitor vessels of similar design. Available from 0.5 to 70 micron rating options.

Series CP, TRU-CELL™

Pleated style cartridges made using a composite synthetic and cellulose blend media with synthetic hardware and a variety of end cap styles. Used in PECO Series 55 liquid vessels or competitor vessels of similar design. Available from 5 to 70 micron ratings options.

Series CF, CELLUPLEAT™ E

Pleated style cartridges made using cellulose media with synthetic hardware and a variety of end cap styles. Used in PECO Series 55 liquid vessels or competitor vessels of similar design. Available from 2 to 50 micron rating options.

Series PP, CELLUPLEAT™

Pleated style cartridges made with cellulose media with steel hardware and a variety of end cap styles. Used in PECO Series 55 liquid vessels or competitor vessels of similar design. Available from 0.5 to 60 micron rating options.

Series XPLC-C, XTREAMPHASE® HIgh Flow Coalescer

High flow style, glass depth coalescers in 40" or 60" lengths for use in PECO Series 110HXP and 110HRXP vessels. Recommended for coalescing hydrocarbon droplets from water.

Series XPLPC-IPC, XTREAMPHASE® High Flow Coalescer

High flow style, glass depth coalescers with internal pleat pack in 40" or 60" lengths for use in PECO Series 110HXP and 110HRXP vessels. Recommended for coalescing hydrocarbon droplets from water. Internal pleat pack helps to capture solid particulate and keep the coalescing tube clean.

Series XPLC-PLPC, XTREAMPHASE® High Flow Coalescer

High flow style, PEACH depth coalescers in 40" or 60" lengths for use in PECO Series 110HXP and 110HRXP vessels. Recommended for coalescing hydrocarbon droplets from water.

Series XPLC-HPC, XTREAMPHASE® High Flow Coalescer

High flow style, Hot/Chem PEACH depth coalescers in 40" or 60" lengths for use in PECO Series 110HXP and 110HRXP vessels. Recommended for coalescing hydrocarbon, amine and caustic droplets from quench water.

Series XPLC-TLPC, XTREAMPHASE® High Flow Coalescer

High flow style, pleated fluoropolymer coalescers in 40" or 60" lengths for use in PECO Series 110HXP and 110HRXP vessels. Recommended for low IFT applications below 15 dynes/cm.

Series C, XTREAMPHASE® Coalescer

Glass depth style coalescers for use in PECO Series 110H and 110V vessels or competitor vessels of similar design. Available in double open end or threaded base end cap styles. Recommended for coalescing hydrocarbon droplets from water.

Series PLPC, XTREAMPHASE® Coalescer

High flow style, Hot/Chem PEACH depth coalescers in 40" or 60" lengths for use in PECO Series 110HXP and 110HRXP vessels. Recommended for coalescing hydrocarbon, amine and caustic droplets from quench water.

Series IPC, XTREAMPHASE® Coalescer

Glass depth style coalescers with internal pleat pack for use in PECO Series 110H and 110V vessels or competitor vessels of similar design. Available in double open end or threaded base end cap styles. Internal pleat pack helps to capture solid particulate and keep the coalescing tube clean.

Series HCPLC, XTREAMPHASE® Coalescer

Hot/Chem PEACH technology, depth coalescers for use in PECO Series 110H and 110HR vessels or competitor vessels of similar design. Available in double open end style and competitor retrofit style. Recommended for coalescing hydrocarbon, amine and caustic droplets from quench water.

Series S, XTREAMPHASE® Separator

Treated, pleated cellulose style separators for use in PECO Series 110H and 110V vessels or competitor vessels of similar design. Available in double open end style.

Series S-SH, XTREAMPHASE® Separator

Synthetic hydrophobic screen style separators for use in PECO Series 110H and 110V vessels or competitor vessels of similar design. Available in double open end style competitor retrofit style. This design is cleanable and resuable.

Series S-TF, XTREAMPHASE® Separator

Teflon coated screen style separators for use in PECO Series 110H and 110V vessels or competitor vessels of similar design. Available in double open end style competitor retrofit style. This design is cleanable and resuable.

This is the heading

Series AC, CARBOMAX™ Canisters Activated carbon granules in canisters form to remove hydrocabons and degradation by-products in amine and glycol process streams. Used in PECO Series 10 vessels and competitor vessels of similar design. The most common size is 11"OD x 22"L and typically double stacked.

Series AC, CARBOMAX™ Bulk

Loose activated carbon granules and non-activated support carbon for fixed beds to remove hydrocabons and degradation by-products in amine and glycol process streams. Used in PECO Series 10FB vessels and competitor vessels of similar design. 4x12 and 8x30 mesh sizes.

Series XS, XTREAMSORB

First stage PEACH media filters & captures solid particulate. This keeps the 2nd stage carbon block pores free from solid contaminants maximizing adsorption hydrocarbons, degradation by-products & aromatics. Used in PECO series 10 & 14 vessels along with competitor vessels that use carbon canisters.
